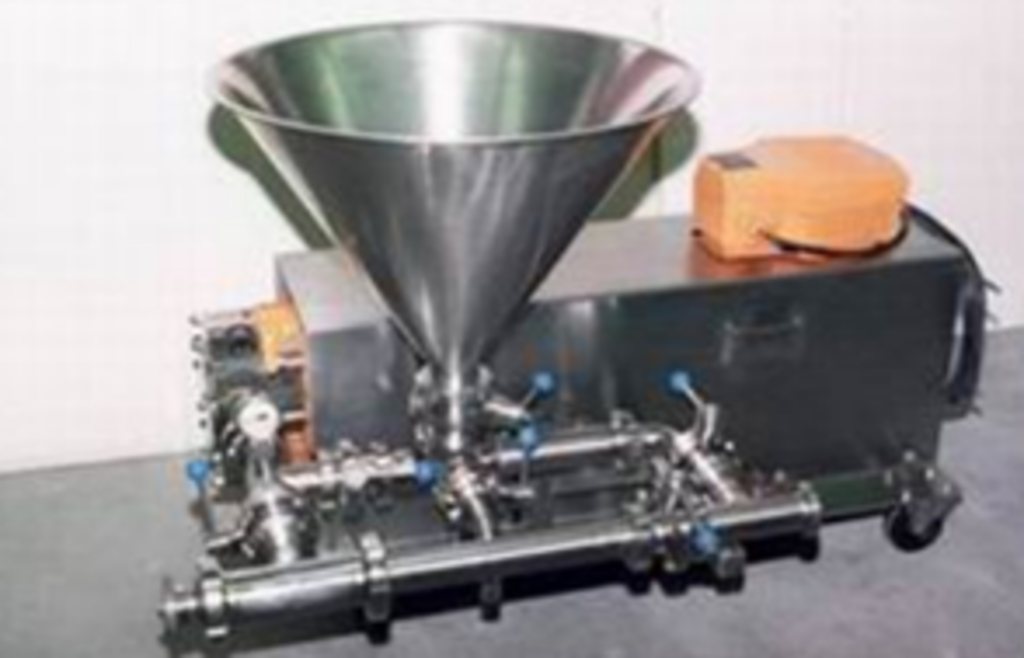

Homogenizer

The homogeniser is working as a particles size reducer for particles in suspension in a liquid and to calibrate their size at a defined value.

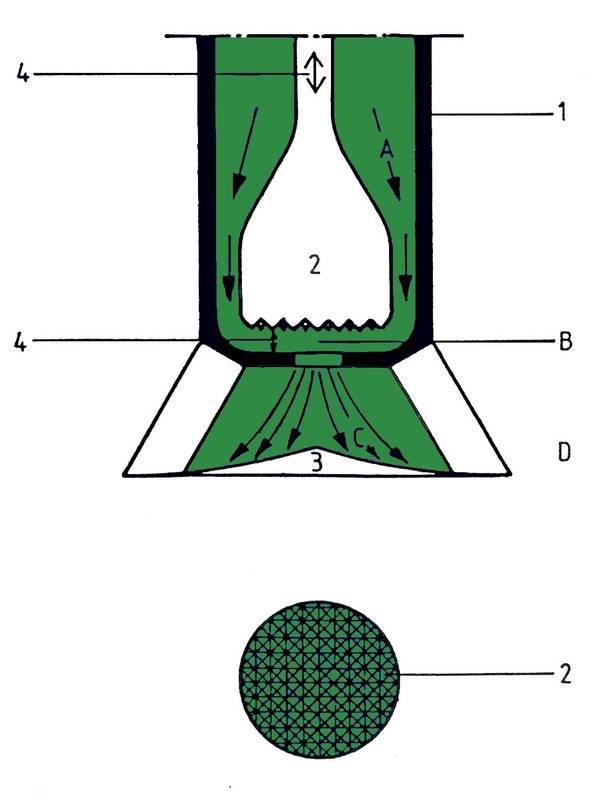

Due to the speed increase (A) in the turbulent pipe (1), the premixed product, reaches the homogenising section  (B) and then is transfered through the particle size reducer (2) Due to the high speed, the turbulence is created in relation to the gap in the reduction zone (4). Finally the product is projected with a high velocity on the impact plate generating a shock.

1  Turbulent pipe

2  Particles size reducer,
    with adjustable gap size

3  Impac plate

4  Adjustable reduction zone



A  Product acceleration zone

B  Homogenizing zone

C  Impact zone

D  Turbulence zone
