Presentation

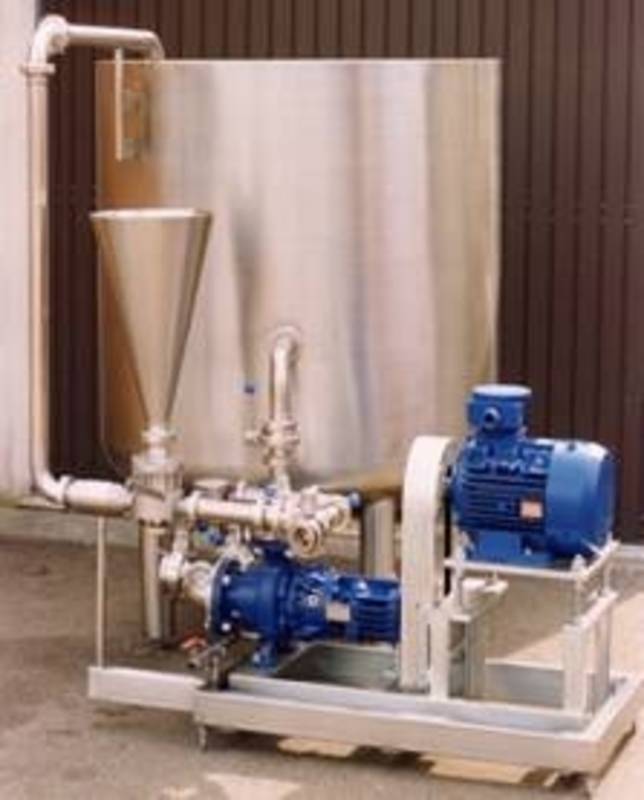

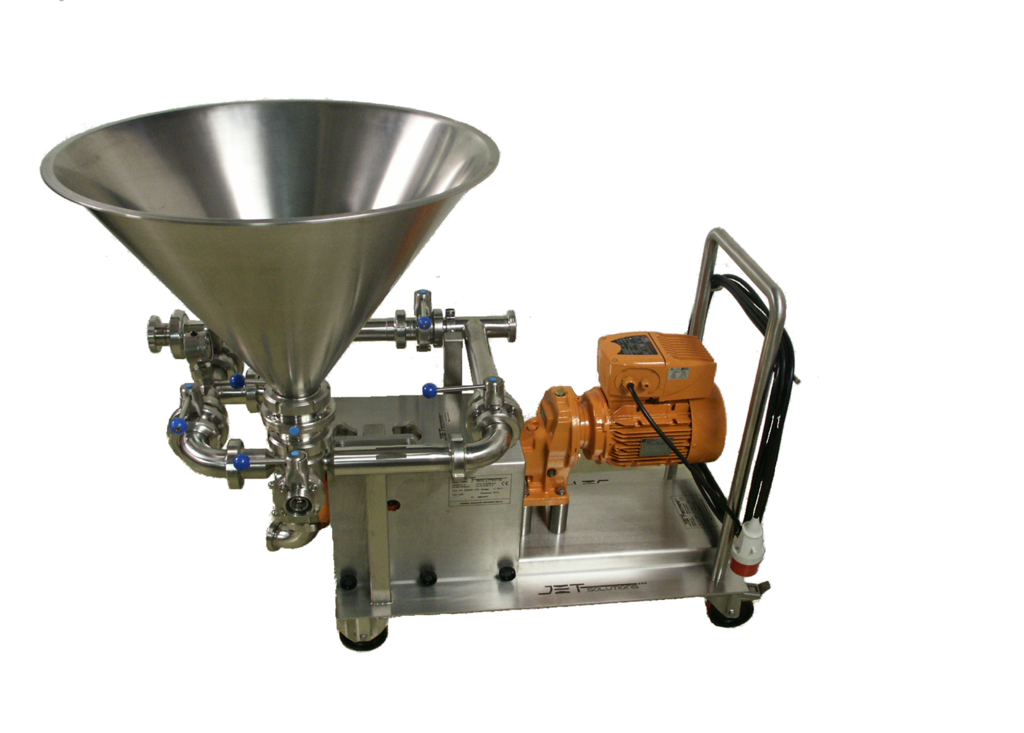

The machine type PST allows the mixing of 1 to 3 liquids with a solid powder or granules of a size not exceeding 5 mm.

All components are pre-assembled upon a base frame entirely in stainless steel.

The main liquid is pumped at a fixed or variable speed to build up the pressure. The feeding pump is selected according to the characteristics of the liquids

The Large jet feed injector, generates a negative pressure (vacuum) up to 800mbar by a Venturi. The vacuum is relative to the flow speed of the liquid. This negative pressure sucks the powder into the liquid and mixes it with the main liquid flow. Additional liquids, like aroma or colorants can be added directly into the injector by a feed stud.

The dosing unit for the powder is selected according to the flow properties of the solids.
